OVERVIEW


QUEST SPORT

Price¥85,000(本体価格)

  • Size 48, 51, 54, 56cm / 48, 51 54cm (Femme)
  • Frame Redesinged Performance geometry, 4130 double-butted chromoly main tubes
  • Fork Full 4130 chromoly lugged crown
  • Rear Derailleur Shimano Claris RD-2400
  • Crank Shimano Claris FC-2450
  • Wheels Alex ID-19 double wall alloy rims with GSW sidewall,28/32H
  • SST

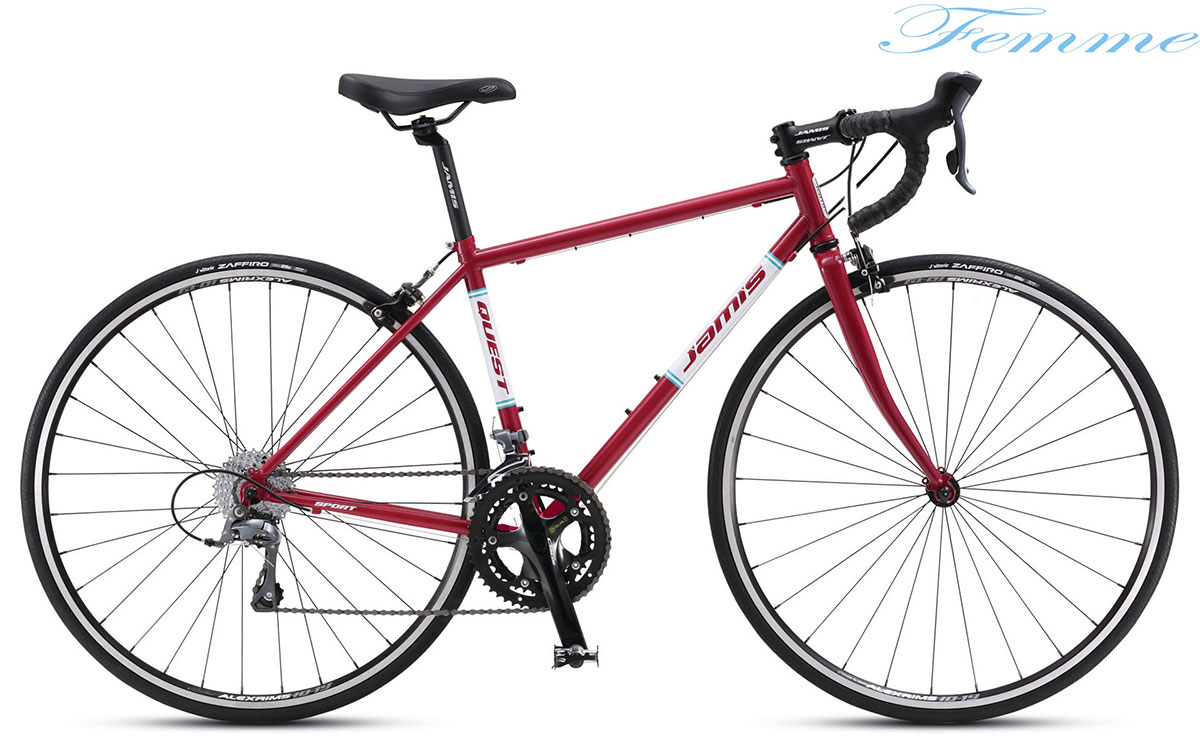

  • Femme

SPECIFICATIONS


Model QUEST SPORT
Price ¥85,000
Frame Resesinged Performance geometry, 4130 double-butted chromoly main tubes with SST tubing diameters, sloping top tube frame design, double-tapered cromo stays, forged dropouts and fender/rack mount eyelets
Fork Full 4130 chromoly lugged crown, radius blades, forged dropouts with fender mount eyelets
Headset Ritchey LB AheadSet, 1 1/8"
Wheels Alex ID-19 double wall alloy rims with GSW sidewall,28/32H, Formula alloy hubs with QR and 14g stainless steel spokes
Tires Vittoria Zaffiro, 700 x 25c
Derailleurs Shimano Claris RD-2400 rear and Shimano Claris FD-2400 front with 31.8mm alloy clamp
Shift levers Shimano Claris ST-2400 Dual Control STI, 16-Speed
Chain KMC 8-speed Z8
Cassette SRAM PG 820 8-Speed 11-30T
Crankset Shimano Claris FC - 2450, 50/34T, 165mm(48), 170mm(51/54,48/51/54), 175mm (56)
BB Set Shimano octalink, 68 x 116mm
Pedals Touring platform style, full alloy with toe clips
Brakeset Tektro R317 long reach dual-pivot calipers with adjustable pads Shimano Claris ST-2400 STI brake levers
Handlebar Jamis Ergo, 6061 aluminum, 31.8 x 380mm(48/48), 400mm (51/54, 51/54), 420mm (56)
Stem Jamis Road, 3D forged 6061 alloy, 7° x 90mm (48/51/48/51), 100mm (54/54/56), 110mm (58/61)
Grips Jamis suede tape
Seat Post Jamis alloy micro-adjust,26.6 x 300mm with cromo seat pin
Saddle Jamis Road Sport with SL top and satin steel rails / Jamis Road Sport Femme with SL top and satin steel rails
Sizes 48, 51, 54, 56cm, 48, 51 54cm

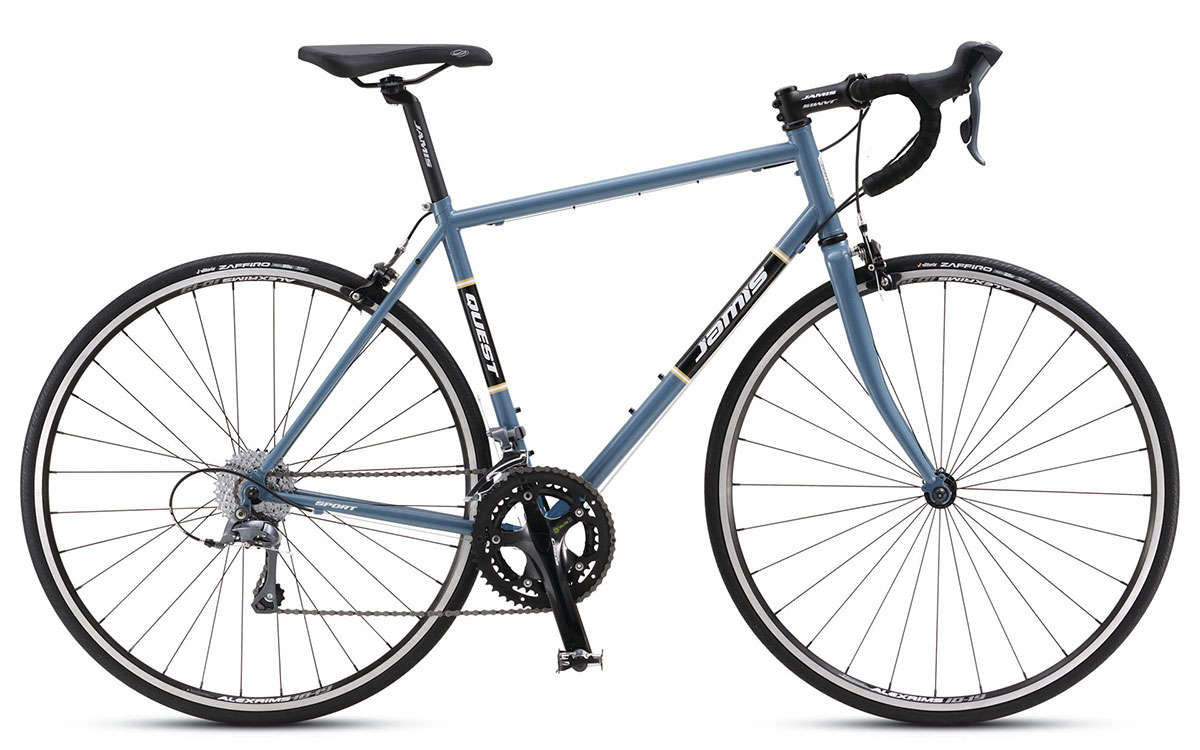

Color Gloss Black , Winter Dusk or Cadenza Rose
Weight 11.0kg

※水色表記はFEMME MODEL

FIT & SIZING


ジオメトリ表
  • A = SEAT TUBE
  • B = EFFECTIVE TT LENGTH
  • C = HEAD TUBE ANGLE
  • D = SEAT TUBE ANGLE
  • E = CHAINSTAY
  • F = WHEELBASE
  • G = FORK RAKE
  • H = BOTTOM BRACKET DROP/HEIGHT
  • I = HEAD TUBE
  • J = STANDOVER
  • K = STACK
  • L = REACH
MODEL QUEST SPORT
SIZE 48 51 54 56
cm cm cm cm
ASEAT TUBE 422 464 483 505
BEFFECTIVE TT LENGTH 515 530 540 555
CHEAD ANGLE 71° 72° 72° 73°
DSEAT ANGLE 74.5° 74° 73° 73 °
ECHAIN STAY 415 415 415 415
FWHEEL BASE 989 983 984 988
GFORK RAKE 50 43 43 43
HBB DROP 68 68 68 68
IHEAD TUBE 120 140 160 180
JSTAND OVER 736 769 786 807
KSTACK 536 562 581 604
LREACH 365 368 362 370
REAR OLD 130 130 130 130
MODEL QUEST SPORT FEMME
SIZE 48 51 54
cm cm cm
ASEAT TUBE 422 464 482
BEFFECTIVE TT LENGTH 505 515 530
CHEAD ANGLE 71° 71.5° 71.5°
DSEAT ANGLE 75.5° 75° 74°
ECHAIN STAY 415 415 415
FWHEEL BASE 988 991 996
GFORK RAKE 50 50 50
HBB DROP 68 68 68
IHEAD TUBE 120 140 160
JSTAND OVER 726 768 785
KSTACK 536 557 558
LREACH 365 365 364
REAR OLD 130 130 130
